Package add-on for trade glazing schedules
Aluminium Flat Rooflights for trade packages
Aluminium Flat Rooflights are offered as a package add-on for wider trade glazing schedules, extensions and drawing-led estimates.
We confirm the appropriate product route per project at quote, based on the opening, drawings, performance target, glass and finish.
Lead time confirmed at quote, never a guess. Pricing per project, never a stock figure.
All product categories →
Fabricated in Haydock, St HelensTrade-only supply from our own workshop.
Trade-firstInstallers, builders, architects, specifiers, joiners and commercial teams.
Quote-confirmed specificationProduct route, performance targets, glass and finish are confirmed per project.
Fabrication record
What aluminium flat rooflights can actually be built to
These are the limits the factory works to, taken from the fabrication data for the system we make this product in. Premium routes in the same family reach better thermal and acoustic figures than the ones below, and are quoted where the project calls for them. Either way this is the envelope, not a quotation: the achievable figures for your opening are confirmed against your drawings and a survey.
| Frame sightline | 90mm |
|---|---|
| Panels per run | 1 to 4 |
| Leaf width | 350 to 1200mm |
| Height | 400 to 2400mm |
| Maximum leaf weight | 120kg |
| Glazing unit | 24 to 44mm |
| Glazing options | Double |
| U-value from, this system | 1.1 W/m²K |
| Security | Fixed structural-glazed rooflight (not a security-rated opening). |
Configurations available
- Kerb-mounted structural-glazed rooflight
- 2-sided / 4-sided structural silicone glazed
- single-bay and multi-bay (rafter-bar) configurations
- suitable for slopes up to 15 degrees (recommended installed slope 3-5 degrees over the kerb).
Any security rating above is the tested performance of the system, held by the system manufacturer. VitrineAlu fabricates to the tested configuration and holds no certification of its own. Evidence for the configuration you specify is issued at quote.
In place

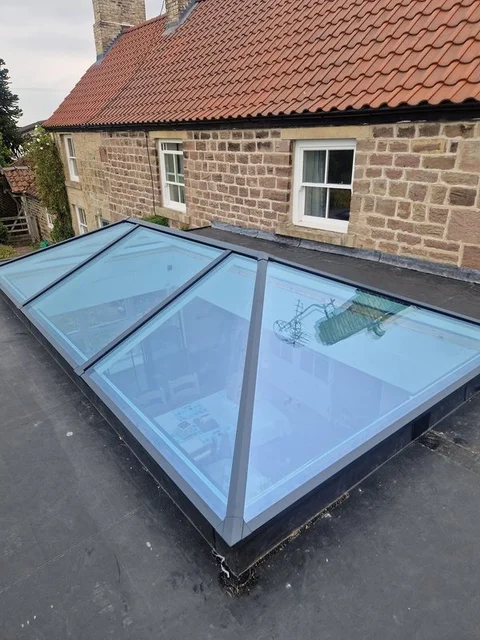

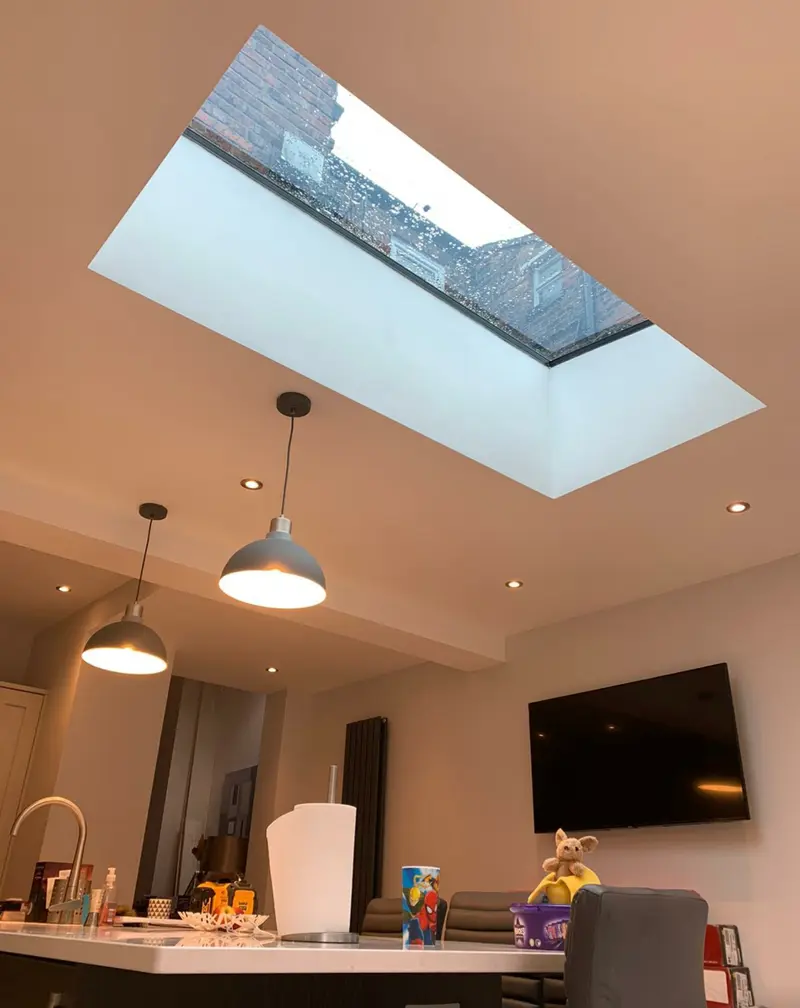

Aluminium Flat Rooflights we have made
Design tool
See your aluminium flat rooflights to scale
Use the concept visualiser to explore approximate size, opening, glazing, finish and detailing before a quote request. It is a discussion aid, not a production drawing or evidence of technical suitability; current project review confirms the selected aluminium flat rooflights route.
Trade accounts only. Apply for one, or send drawings for an estimate instead.
For homes
Love these for your home?
VitrineAlu supplies through the trade. Send a referral request and we will review the product route before any installer handoff, and your details are only passed on with your consent. Your installation contract and warranty remain with the installer you choose to proceed with.
Specification
Aluminium Flat Rooflights
- Sightline
- 90 mm
- Glazing
- 24-44 mm
- Leaves
- up to 4
- Security
- Fixed structural-glazed rooflight (not a security-rated opening).
- Status
- Capability, confirmed at quote
- Thermal
- U-values from 0.9 W/m²K where specified
- Size and Weight
- Project assessed
- Security
- Specification dependent
- Glazing
- Double or triple glazed
- Finishes
- Project colour choices
- Configurations
- Fixed rooflights, drawing-led quoting
Figures are achievable capability for the system, not a quotation. The route, glass and hardware that deliver them are confirmed per project.
Request current test evidenceFaster quote
What to send
Send these and the route can be confirmed without a back-and-forth.
- Structural opening size, kerb details and roof build-up.
- Fixed rooflight size, glass and finish preference.
- Thermal target and any solar-control, privacy or safety-glass requirement.
How we specify
The right product route is chosen per project
Exact specification (U-value, sizes, weights, security class, finish) is confirmed per project at quote, selected to suit the trade brief.
It means you lead with the outcome: light, security, clean sightlines, usable openings, buildable details and a specification that suits the drawings.
More on how routes are specified: security and PAS 24 routes and energy efficiency and U-values.
Common questions
What U-value does a flat rooflight reach?
Thermally broken aluminium flat rooflights reach whole-unit U-values from 0.9 W/m²K where specified, with double or triple glazing. Because a rooflight faces straight up it sees more sky and more solar gain than a window, so the glass specification carries most of the result. We confirm the figure for your unit at quote.
Are your flat rooflights fixed, or do they open?
The flat rooflights we supply are fixed units, quoted from drawings. That keeps the sightline low and the detail simple where the rooflight is there for daylight rather than ventilation. If the room needs ventilation as well, tell us at quote and we will spec it into the wider opening schedule instead.
What do you need to quote a flat rooflight?
The structural opening size, the kerb detail and the roof build-up, then the finished size, glass and finish you want. Kerb detail matters most - it sets how the unit sits, how it weathers and the finished internal sightline. Send those through quote.
Can I get solar control, privacy or safety glass in a rooflight?
Yes. Solar control glass is worth specifying on a south-facing flat roof, privacy interlayers where the rooflight is overlooked, and laminated or toughened panes where the build-up or the room below calls for it. Tell us the thermal target and any solar-control, privacy or safety-glass requirement and we confirm the make-up at quote.
Can I order a flat rooflight on its own?
Flat rooflights are supplied as a package add-on to a wider trade glazing order rather than as a single-item purchase. Add them to the same schedule as the doors and windows for the project and they are quoted, fabricated and delivered together. Send the schedule through quote.
