Package add-on for trade glazing schedules
Aluminium Roof Lanterns for trade packages
Aluminium Roof Lanterns are offered as a package add-on for wider trade glazing schedules, extensions and drawing-led estimates.
We confirm the appropriate product route per project at quote, based on the opening, drawings, performance target, glass and finish.
Lead time confirmed at quote, never a guess. Pricing per project, never a stock figure.
All product categories →
Fabricated in Haydock, St HelensTrade-only supply from our own workshop.
Trade-firstInstallers, builders, architects, specifiers, joiners and commercial teams.
Quote-confirmed specificationProduct route, performance targets, glass and finish are confirmed per project.
Fabrication record
What aluminium roof lanterns can actually be built to
These are the limits the factory works to, taken from the fabrication data for the system we make this product in. Premium routes in the same family reach better thermal and acoustic figures than the ones below, and are quoted where the project calls for them. Either way this is the envelope, not a quotation: the achievable figures for your opening are confirmed against your drawings and a survey.
| Frame sightline | 90mm |
|---|---|
| Panels per run | 1 to 4 |
| Leaf width | 350 to 1200mm |
| Height | 400 to 2400mm |
| Maximum leaf weight | 120kg |
| Glazing unit | 24 to 44mm |
| Glazing options | Double |
| U-value from, this system | 1.1 W/m²K |
| Security | Fixed structural-glazed rooflight (not a security-rated opening). |
Configurations available
- Kerb-mounted structural-glazed rooflight
- 2-sided / 4-sided structural silicone glazed
- single-bay and multi-bay (rafter-bar) configurations
- suitable for slopes up to 15 degrees (recommended installed slope 3-5 degrees over the kerb).
Any security rating above is the tested performance of the system, held by the system manufacturer. VitrineAlu fabricates to the tested configuration and holds no certification of its own. Evidence for the configuration you specify is issued at quote.
In place

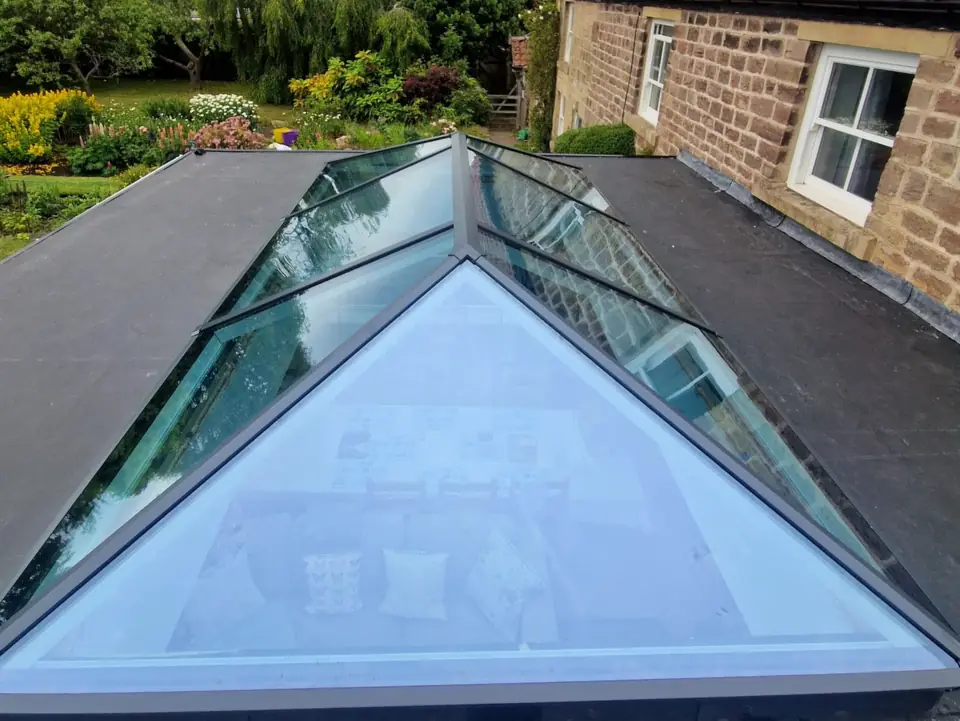

Aluminium Roof Lanterns we have made
Design tool
See your aluminium roof lanterns to scale
Use the concept visualiser to explore approximate size, opening, glazing, finish and detailing before a quote request. It is a discussion aid, not a production drawing or evidence of technical suitability; current project review confirms the selected aluminium roof lanterns route.
Trade accounts only. Apply for one, or send drawings for an estimate instead.
For homes
Love these for your home?
VitrineAlu supplies through the trade. Send a referral request and we will review the product route before any installer handoff, and your details are only passed on with your consent. Your installation contract and warranty remain with the installer you choose to proceed with.
Specification
Aluminium Roof Lanterns
- Sightline
- 90 mm
- Glazing
- 24-44 mm
- Leaves
- up to 4
- Security
- Fixed structural-glazed rooflight (not a security-rated opening).
- Status
- Capability, confirmed at quote
- Thermal
- U-values from 1.0 W/m²K where specified
- Size and Weight
- Up to 75 kg where specified
- Security
- Package route confirmed at quote
- Glazing
- Double or triple glazed
- Finishes
- Full RAL range
- Configurations
- Drawing-led sizing for extensions and open-plan spaces
Figures are achievable capability for the system, not a quotation. The route, glass and hardware that deliver them are confirmed per project.
Request current test evidenceFaster quote
What to send
Send these and the route can be confirmed without a back-and-forth.
- Structural opening size, roof build-up and pitch/kerb details.
- Glazing, colour and thermal target.
- Drawings or extension plans for checking before fabrication.
How we specify
The right product route is chosen per project
Exact specification (U-value, sizes, weights, security class, finish) is confirmed per project at quote, selected to suit the trade brief.
It means you lead with the outcome: light, security, clean sightlines, usable openings, buildable details and a specification that suits the drawings.
More on how routes are specified: security and PAS 24 routes and energy efficiency and U-values.
Common questions
What size roof lantern can I have over an extension?
Lanterns are sized from your structural opening rather than a fixed range, so the limit is the opening, the roof build-up and the weight the structure carries - up to 75 kg where specified. Send the opening size, the pitch or kerb detail and the extension drawings and we will confirm the size at quote.
What U-value does an aluminium roof lantern reach?
Thermally broken aluminium lanterns reach whole-unit U-values from 1.0 W/m²K where specified, with double or triple glazing. A roof lantern sits in the coldest plane of the building, so the glass make-up moves the result more than it would in a wall. We confirm the figure for your unit at quote.
Do I need a kerb, and what do you need from me to quote?
A lantern needs an upstand or kerb to sit on, and its detail changes the finished height and the weathering. Send the structural opening size, the roof build-up and the pitch or kerb detail, plus your glazing, colour and thermal target. Drawings or extension plans let us check the fit before anything is fabricated. Start at quote.
What colours are available on a roof lantern?
Full RAL range, powder coated, and the inside face can differ from the outside where the room and the roof want different colours. Finish is set per project alongside the glazing, and confirmed at quote.
Can I order a roof lantern on its own?
Roof lanterns are supplied as a package add-on to a wider trade glazing order rather than as a single-item purchase. If you are already sending us doors or windows for a project, add the lantern to the same schedule and it is quoted, fabricated and delivered with them. Send the schedule through quote.
