Aluminium Curtain Walling
Engineered thermally broken aluminium stick-built curtain walling for commercial facades, double-height residential extensions, atrium glazing and structural entrance screens across the North West.
We confirm the appropriate product route per project at quote, based on the opening, drawings, performance target, glass and finish.
Lead time confirmed at quote, never a guess. Pricing per project, never a stock figure.
All product categories →
Fabricated in Haydock, St HelensTrade-only supply from our own workshop.
Trade-firstInstallers, builders, architects, specifiers, joiners and commercial teams.
Quote-confirmed specificationProduct route, performance targets, glass and finish are confirmed per project.
Fabrication record
What aluminium curtain walling can actually be built to
These are the limits the factory works to, taken from the fabrication data for the system we make this product in. Premium routes in the same family reach better thermal and acoustic figures than the ones below, and are quoted where the project calls for them. Either way this is the envelope, not a quotation: the achievable figures for your opening are confirmed against your drawings and a survey.
| Frame sightline | 62mm |
|---|---|
| Panels per run | 1 to 8 |
| Leaf width | 600 to 1500mm |
| Height | 600 to 4000mm |
| Maximum leaf weight | 250kg |
| Glazing unit | 24 to 52mm |
| Glazing options | Double, Triple |
| U-value from, this system | 1.4 W/m²K |
Configurations available
- Stick
- Capped
- Structural-glazed
Any security rating above is the tested performance of the system, held by the system manufacturer. VitrineAlu fabricates to the tested configuration and holds no certification of its own. Evidence for the configuration you specify is issued at quote.

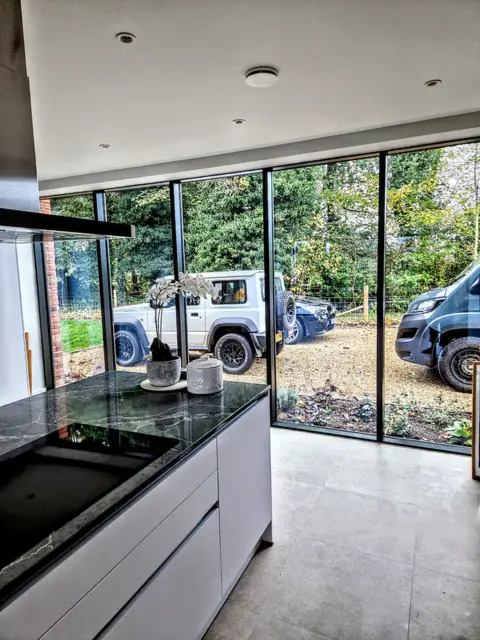

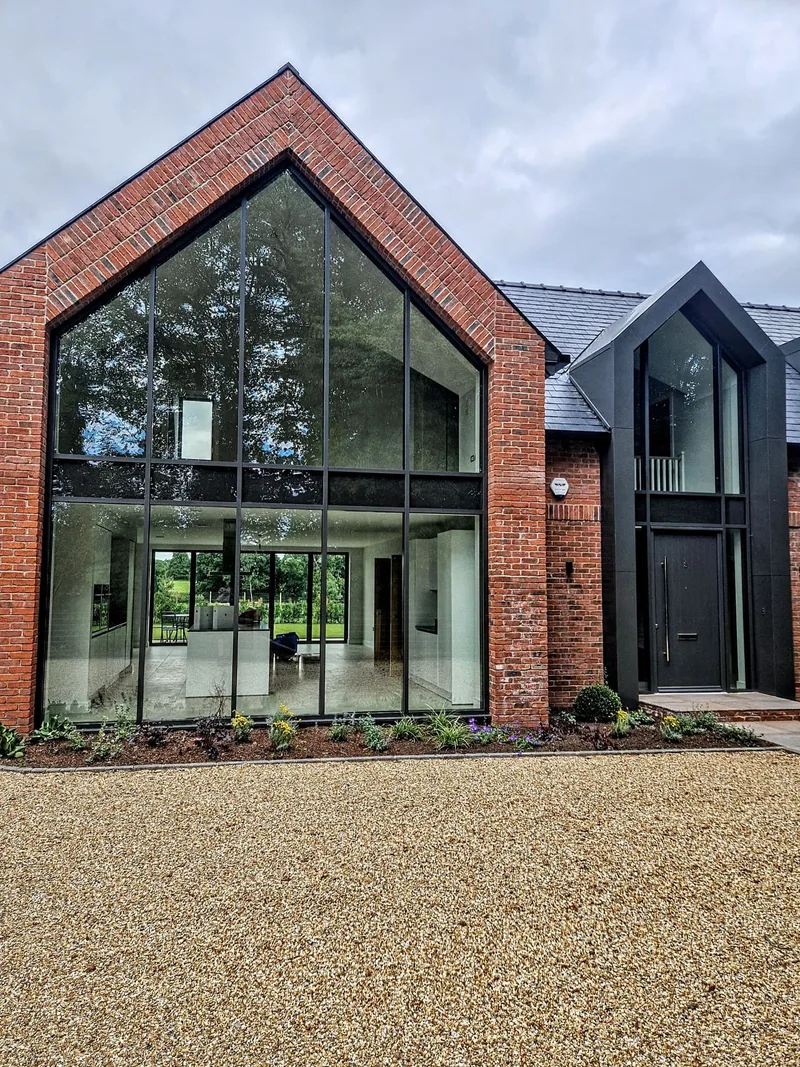

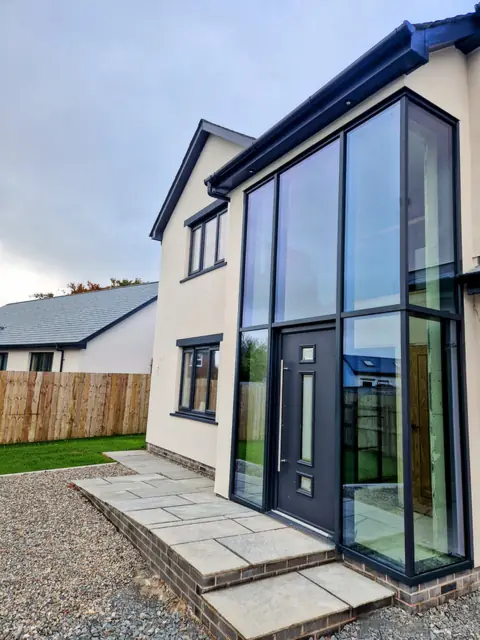

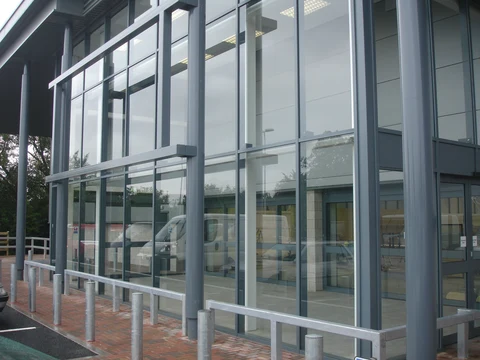

In place
Aluminium Curtain Walling we have made
Design tool
See your aluminium curtain walling to scale
Use the concept visualiser to explore approximate size, opening, glazing, finish and detailing before a quote request. It is a discussion aid, not a production drawing or evidence of technical suitability; current project review confirms the selected aluminium curtain walling route.
Trade accounts only. Apply for one, or send drawings for an estimate instead.
For homes
Love these for your home?
VitrineAlu supplies through the trade. Send a referral request and we will review the product route before any installer handoff, and your details are only passed on with your consent. Your installation contract and warranty remain with the installer you choose to proceed with.
Specification
Aluminium Curtain Walling
- Sightline
- 62 mm
- Glazing
- 24-52 mm
- Leaves
- up to 8
- Status
- Capability, confirmed at quote
- Thermal
- Overall facade Ucw values down to 0.60 W/m²K (triple-glazed) / 0.80 W/m²K (double-glazed) with continuous polyamide thermal isolators
- Size and Weight
- Grid spans up to 1.8 m wide × 4.2 m high per bay, glass infill weights up to 450 kg per pane; 50 mm, 52 mm and 60 mm face sightlines
- Security
- BS EN 13830 / UKCA / DoP full certification; PAS 24:2025 tested security, RC2 / RC3 burglary resistance and STS 202 BR2 commercial routes
- Glazing
- Acoustic, solar-control and triple-glazed IGU infills from 24 mm to 62 mm with pressure-equalised drained mullion/transom channels
- Finishes
- Qualicoat Seaside Class 2 marine-grade powder coating across the full RAL spectrum, dual-colour and anodised finishes
- Configurations
- Stick-built mullion-transom facades, capped, semi-structural silicone glazing (SSG), faceted corners, integrated parallel-opening vents and entrance doors
- Weather
- CWCT Sequence B compliant: Watertightness to 1050 Pa (static) / 600 Pa (dynamic), Wind resistance to 2400 Pa design / 3600 Pa safety, Air permeability Class AE
Figures are achievable capability for the system, not a quotation. The route, glass and hardware that deliver them are confirmed per project.
Request current test evidenceFaster quote
What to send
Send these and the route can be confirmed without a back-and-forth.
- Elevation drawings, opening grid and mullion/transom intent.
- Thermal, glass, facade, entrance and movement requirements.
- Commercial programme, standards support and any project-specific calculations needed.
How we specify
The right product route is chosen per project
Exact specification (U-value, sizes, weights, security class, finish) is confirmed per project at quote, selected to suit the trade brief.
It means you lead with the outcome: light, security, clean sightlines, usable openings, buildable details and a specification that suits the drawings.
More on how routes are specified: security and PAS 24 routes and energy efficiency and U-values.
Best fit
- Commercial contractors
- Architects & specifiers
- Design & build contractors
- High-end residential extensions
Common questions
What standard does aluminium curtain walling have to meet in the UK?
Aluminium curtain walling is tested and classified to BS EN 13830, the product standard for curtain wall kits. It covers air permeability, watertightness, wind resistance and impact. We supply UKCA marking and Declaration of Performance support, with PAS 24 and RC2 routes where specified, so the facade carries the right paperwork for building control. See our curtain walling page, and request the current test evidence for your specified route at technical information.
What is the difference between stick and unitised curtain walling?
Stick curtain walling is cut and glazed on site from mullions, transoms and glass, which suits lower-rise and irregular elevations. That is the route we fabricate, thermally broken on a 66 mm sight line where specified. Unitised arrives as factory-glazed panels craned into place, used mainly on tall repetitive facades. Start a quote with your elevation drawings.
How big can a curtain walling facade unit be?
Facade units run up to 1.5 m by 3.6 m at up to 350 kg each where specified, spanning floor to floor on a slim 66 mm sight line. Achievable panel size depends on the glass make-up, wind load and bracket detailing. Send your elevations through quote and we will size the sections.
Do you engineer curtain walling to suit the building?
Yes. We size the mullions and transoms to your spans, wind loads and floor heights, then detail the brackets, movement joints and structural interface. Whole-facade Ucw runs from 0.6 W/m²K where specified, with drawings and performance data supplied in the package. Send elevations through quote and we will work up the sections for your building.
What glazing can go into aluminium curtain walling?
Curtain walling takes project-specified insulated glass units up to 58 mm, with solar control, acoustic glass and toughened or laminated panes where safety or security need it. Thermally broken framing holds whole-facade Ucw from 0.6 W/m²K where specified. Confirm the whole-unit value at quote. Read more on energy efficiency before you specify glass.
